25–100 KVAR/440 V 50 Hz

For networks with low/medium harmonic distortion
< 30% THD in current Exchangeable module. The 1000 Series is the ideal solution for manufacturing capacitors banks, optimising the maximum space in the cabinet. Its innovative Rack 19“ type design allows a convenient mounting, simple installation and easy maintenance. The 1000 Series fits any cabinet types available in the market due to its standard sizes. That makes it an ideal solution to include the capacitor bank inside the same cabinet as the main board. TECHNICAL SPECIFICAT IONS AND STANDARD EQUIPMENT Rated voltage: 440 V 50 Hz. Admissible working voltage range: 380 – 440 V. Capacitor duty contactors. Three-phase capacitors TR30 Series with internal safety system. Step protection fuses. Halogen-free cables. Maximun interconnection up to 400 Kvar , each bus-bar OPTIONAL EQUIPMENT AND NON-STANDARD EQUIPMENTS Other power ratings, voltages, steps or frequencies available upon request. Cheek Sheet

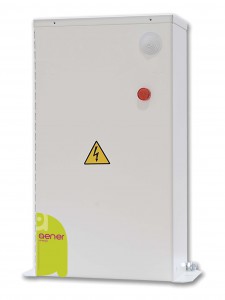

5–90 KVAR/440 V 50 Hz

FT45 Series with automatic thermo-magnetic circuit
breaker
The FT45 Series is an equipment specially designed for the fixed electrical loads and transformers reactive energy compensation, incorporating some appropriated operating protection devices. Its design makes it the ideal component for the construction of automatic capacitor banks of high power. AENER´s capacitors fitted in our equipments are totally manufactured free of PCB and do not contain toxic substances.
AENER´s capacitors are totally protected against over voltage or ageing at the end of the capacitor’s useful service life.

TECHNICAL SPECIFICATIONS AND STANDARD EQUIPMENT

Rated voltage: 440 V 50 Hz.
Maximum permissible current: 1,3 In.
Tolerance of capacitance: -5 +15%.
Dielectric losses: < 0,2 W / Kvar. Life expectancy: > 120.000 h.
Temperature range inside the equipment: Max. 55ºC / Min. -25ºC
Self-Healing. Delta internal connection. Inside discharge resistor. Metal box.
Safety device: Built-in. Three-phase automatic thermo-magnetic circuit contact breaker. Capacitor on-line indicator lamp.
Other power ratings, voltages or frequencies available upon request.

Check Sheet

37,5–600 KVAR/400 V 50 Hz

For networks with high harmonic distortion > 60% THD
in current
The 4500 Series of AENER ENERGIA is especially designed to compensate the reactive energy in networks with very high harmonics content; the bank incorporates harmonic filters. The 4500 Series is an effective solution to raise the power factor and to increase the quality of the power supply by reducing the THD values of the installation.

TECHNICAL SPECIFICATIONS AND STANDARD EQUIPMENT
Anti-resonance blockage harmonics filter reactors detuned at 189 Hz (for
other detuned frequencies, please consult). Detuning factor: 7%.
Rated voltage: 400 V 50 Hz.
Admissible working voltage range: 380 – 400 V.
Power factor controller PFR-6 or PFR-12 equipped with microprocessor.
Capacitor duty contactors over dimensioned to work in networks with
harmonic distortion. Three-phase capacitors TR30 Series with internal safety system, specially calculated to work with detuned reactors. Step protection fuses. Switching transformer. Built in fan for a better refrigeration of the bank. Halogen-free cables. Top quality metal cabinet.

OPTIONAL EQUIPMENT AND NON-STANDARD EQUIPMENTS
Specially protected cabinets for outdoor use (polyester, stainless steel, metal cabinets with high IP protection). Automatic thermo-magnetic circuit breaker or three-pole on-load circuit breaker, diferential protection. Other power ratings, detunnig factor, voltages, steps or frequencies available upon request.

Cheek Sheet
