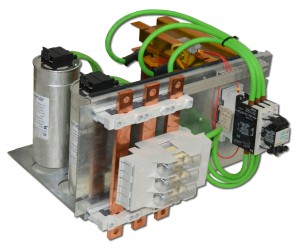

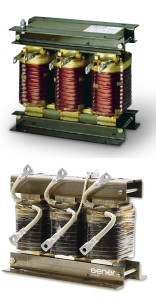

10–50 KVAR/400 V 50 Hz

For networks with high harmonic distortion
> 60% THD in current
The transferring of the resonance frequency to a frequency value
lower than that of the predominant harmonic is achieved by adding
an inductance in parallel to the capacitor.
The using of Aener reactors allows to reduce sensibly the harmonics in
the installation for both linear loads and in the sources (transformers
and generators). With the installation of capacitor banks equipped
with harmonic filters the harmonics circulate between the generating
loads and the capacitor bank eliminating, this way, the harmonics
from the rest of the installation. This is the reason behind the
importance of filtering the harmonics as close as possible to the
generating loads.

TECHNICAL SPECIFICATIONS
Rated voltage: 400 V 50 Hz.
Detuning factor: 7%.
Resonance frequency: 189 Hz.
Inductance tolerance: ± 3%.
Linearity: 1,75 In.
Test voltage: 3.000 V.
Thermal isolation: Class F / 155°C.
Maximum ambient temperature: + 45°C.
Protection level: IP00.

Check Sheet

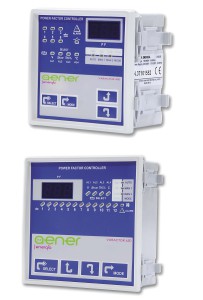

6 steps V450 / 6 and 12 steps V650

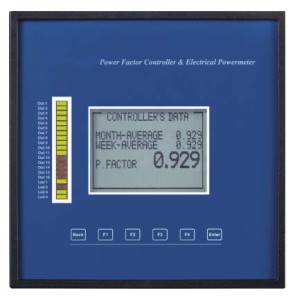

Reactive Energy Controller V450 – V650
The Aener’s controllers V450 – V650 are equipped with the newest
generation of microprocessors and they are incorporating alarms and sophisticated control functions which ensure the capacitors protection against serious or non-normal working conditions.

MAIN CHARACTERISTICS
Operated by a powerful microprocessor. Automatic correction of the
Current Transformer (CT). Multiple readings (RMS measurement).
Intelligent alarm functions.
Separate measurement and power supply inputs. Two manual control
modes. Safety dual-level digital programming. Digital display.

TECHNICAL SPECIFICATIONS
Input voltage: 100 V – 690 Vrms.
Supply voltage: 230-240 V and 115-120 V ±10% (selectable).
Frequency: 50/ 60 Hz.
Input current: 5A.
Maximum input current: (sinewave) 5,5 A.
Minimum input current: 100 mA.
Power Factor adjustment: 0,50 Ind. / 0,50 cap.
Adjustable alarms: over voltage, low power factor, over current
(harmonics), over temperature, etc. CT range: 5/5 A up to 12.000/5 A.
Readings: PF, V, Δ kvar, THC%, °C.
Programmable commutation intervals and reconnection delay times.
Self-adapting switching sequence.
Dimensions: 96 x 96 x 50 mm (type 450), 144 x 144 x 50 mm (type 650).
Weight (approx.): 0,450 kg (type 450), 0,680 kg (type 650).

Check Sheet

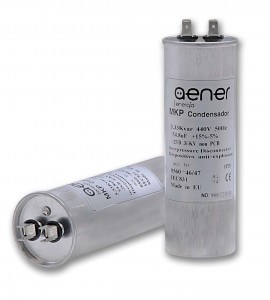

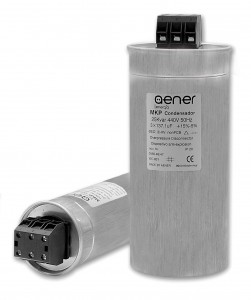

1,67–5 KVAR/240–400–440 V 50 Hz

For networks with low/medium harmonic distortion
< 30% THD in current
AENER´s capacitors fitted in our equipments are totally manufactured free of PCB and do not contain toxic substances. Our capacitors consist of a low-loss dielectric formed by pure polypropylene film.
AENER´s capacitors are totally protected against over voltage or ageing at the end of the capacitor’s useful service life.

TECHNICAL SPECIFICATIONS

Rated voltage: 240 – 400 – 440 V 50 Hz.
Maximum permissible current: 1,3 In.
Tolerance of capacitance: -5 +15%.
Dielectric losses: < 0,2 W / Kvar. Life expectancy: > 120.000 h.
Temperature range inside the equipment: Max. 55°C / Min. -25°C.
Construction technology: self-healing.
Discharge resistance: built-in.
Case type: cylindrical, aluminium.
Fixing system: bottom stud M12.
Conection: double faston 6,3.
Safety device: built-in.

Check Sheet

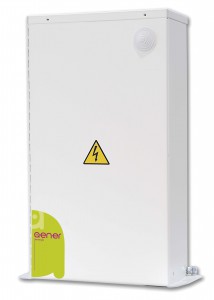

5–120 KVAR/240–400–440–525–690–1100 V 50 Hz

For networks with low/medium harmonic distortion
< 30% THD in current The FT40 series is equipment specially designed for the fixed electrical loads and transformers reactive energy compensation, incorporating some appropriated operating protection devices. Its design makes it the ideal component for the construction of automatic capacitor banks of high power. AENER´s capacitors fitted in our equipments are totally manufactured free of PCB and do not contain toxic substances. AENER´s capacitors are totally protected against over voltage or ageing at the end of the capacitor’s useful service life. TECHNICAL SPECIFICATIONS AND STANDARD EQUIPMENT Rated voltage: 240 – 400 – 440 – 525 – 690 – 1100 V 50 Hz. Maximum permissible current: 1,3 In. Tolerance of capacitance: -5 +15%. Dielectric looses: < 0,2 W / Kvar. Life expectancy: > 120.000 h.
Temperature range inside the equipment: Max. 55°C / Min. -25°C
Construction technology: Self-Healing.
Internal connection: Delta.
Discharge resistance: Built-in. Framework type: Prismatic.
Connection Terminal: Terminal blocks. Safety device: Built-in.
