2000 SERIES

/en /por

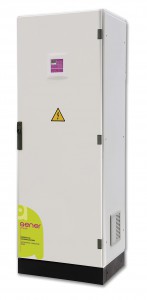

2000 SERIES200 – 1000 KVAR/440 V 50 Hz

For networks with low/medium harmonic distortion
< 30% THD in current
Automatic capacitor bank for large facilities like big supermarkets,
commercial malls, sports stadiums, industrial factories, singular
buildings, airports, ports, hospitals, etc. The architecture of this
equipment is totally flexible based on our modular system 1000 Series,
which allows to increase the power even when already installed.

TECHNICAL SPECIFICATIONS AND STANDARD EQUIPMENT

Rated voltage: 440 V 50 Hz.
Admissible working voltage range: 380 – 440 V.
Power factor controller PFR-6 or PFR-12 equipped with microprocessor.
Capacitor duty contactors.
Three-phase capacitors TR30 Series with internal safety system.
Step protection fuses.
Copper busbars.
Built in fan for a better refrigeration of the bank.
Halogen-free cables.
Top quality metal cabinet.

OPTIONAL EQUIPMENT AND NON-STANDARD EQUIPMENTS

Specially protected cabinets for outdoor use (polyester, stainless steel, metal cabinets with high IP protection). Switching transformer.
Three-pole on-load circuit breaker or automatic thermo-magnetic circuit breaker.
Other power ratings, voltages, differential protection, steps or frequencies available upon request.

Check Sheet

300 SERIES

/en /por

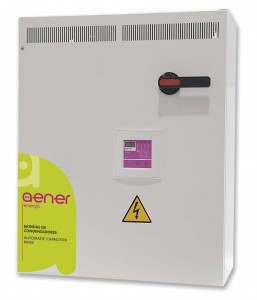

300 SERIES77,5 – 220 KVAR/440 V 50 Hz

For networks with low/medium harmonic distortion
< 30% THD in current
Automatic capacitor bank designed for medium sized installations.
Thanks to its reduced dimensions, it is the ideal solution for saving
energy in small hypermarkets, commercial malls, small hospitals,
workshops, small factories, sport centres, golf courses, etc.

TECHNICAL SPECIFICATIONS AND STANDARD EQUIPMENT

Rated voltage: 440 V 50 Hz.
Admissible working voltage range: 380 – 440 V.
Power factor controller PFR-6 equipped with microprocessor.
Automatic thermo-magnetic circuit breaker.
Capacitor duty contactors.
Three-phase capacitors TR30 Series with internal safety system.
Halogen-free cables.
Top quality metal cabinet.

OPTIONAL EQUIPMENT AND NON-STANDARD EQUIPMENTS

Specially protected cabinets for outdoor use (polyester, stainless steel, metal cabinets with high IP protection).
Switching transformer.
Other power ratings, voltages, differential protection, steps or frequencies available upon request.

Check Sheet

200 SERIES

/en /por

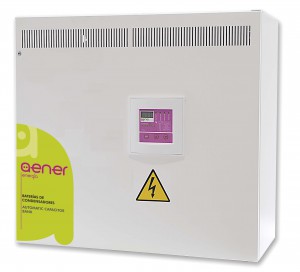

200 SERIES

12,5–90 KVAR/440 V 50 Hz

For networks with low/medium harmonic distortion
< 30% THD in current
Automatic capacitor bank manufactured with small steps so that it
sets the required power factor with the highest accuracy of small and
medium sized installations like restaurants, supermarkets, small and
medium workshops, service stations, health centres, small hospitals,
gymnasiums, etc.

TECHNICAL SPECIFICATIONS AND STANDARD EQUIPMENT

Rated voltage: 440 V 50 Hz.
Admissible working voltage range: 380 – 440 V.
Power factor controller PFR-6 equipped with microprocessor.
Automatic thermo-magnetic circuit breaker.
Capacitor duty contactors.
Three-phase capacitors TR30 Series with internal safety system.
Halogen-free cables.
Top quality metal cabinet.

OPTIONAL EQUIPMENT AND NON-STANDARD EQUIPMENTS
Specially protected cabinets for outdoor use (polyester, stainless steel, metal cabinets with high IP protection).
Switching transformer.
Other power ratings, voltages, differential protection, steps or frequencies available upon request.
Check Sheet

4000 SERIES

/en /por

4000 SERIES22,5 – 500 KVAR/400 V 50 Hz

For networks with high harmonic distortion < 60% THD in current
Automatic capacitor bank specially designed to work in polluted
installations. This equipment is unique at absorbing harmonics distortion
without incorporating harmonic filters. The capacitors, contactors and
components used are suitably prepared for operation under problem
voltage and current conditions.

TECHNICAL SPECIFICATIONS AND STANDARD EQUIPMENT
Rated voltage: 400 V 50 Hz.
Admissible working voltage range: 380 – 400 V.
Power factor controller PFR-6 or PFR-12 equipped with microprocessor.
Capacitor duty contactors over dimensioned to work in networks with
harmonic distortion.
Three-phase capacitors TR30 Series with internal safety system, specially
designed to absorb harmonics distortion up to 60% THD in current.
Automatic thermo-magnetic circuit breaker is included up to 95 Kvar.
Step protection fuses (from 120 Kvar).
Built in fan for a better refrigeration of the bank. Halogen-free cables. Top quality metal cabinet.

OPTIONAL EQUIPMENT AND NON-STANDARD EQUIPMENTS
Specially protected cabinets for outdoor use (polyester, stainless steel, metal cabinets with high IP protection).
Switching transformer.
Automatic thermo-magnetic circuit breaker or three-pole on-load circuit breaker from 95 Kvar. Other power ratings, differential protection, voltages, steps or frequencies available upon request.

Cheek Sheet

20 SERIES

/en /por

20 SERIES7,5 – 35 KVAR/440 V 50 Hz

For networks with low/medium harmonic distortion
< 30% THD in current
The ultimate automatic capacitor bank with the newest attractive
design. This is the ideal solution to eliminate the penalty for reactive
energy consumption in small installations without main board where
the equipment is shown to the public.
All kind of shops, coffee shops, pubs, restaurants, small markets,
language schools, hairdressing salons, etc. can now install our pretty
capacitor bank remaining the decoration of the business untouched.

TECHNICAL SPECIFICATIONS AND STANDARD EQUIPMENT
Rated voltage: 440 V 50 Hz.
Admissible working voltage range: 380 – 440 V.
Power factor controller PFR-6 equipped with microprocessor.
Automatic thermo-magnetic circuit breaker.
Capacitor duty contactors.
Three-phase capacitors TR30 Series with internal safety system.
Halogen free cables.
Top quality metal-plastic cabinet with attractive design.

OPTIONAL EQUIPMENT AND NON-STANDARD EQUIPMENTS
Other power ratings, voltages, steps or frequencies available upon request.

>Cheek Sheet

700 SERIES

/en /por

700 SERIES2,5–20 KVAR/440 V 50 Hz

For networks with low/medium harmonic distortion
< 30% THD in current
Automatic capacitor bank with one or two steps. Ideal solution for
power factor correction in very small installations where connections
of different steps are no needed. Extremely easy usage and installation. With no doubt, it is the best solution for saving in small electrical installations.

TECHNICAL SPECIFICATIONS AND STANDARD EQUIPMENT
Rated voltage: 440 V 50 Hz.
Admissible working voltage range: 380 – 440 V.
Power factor controller PFR-200 with microprocessor and 5 levels for the
adjustment of the C/K value.
Capacitor duty contactors.
Three-phase capacitors TR30 Series with internal safety system.
Halogen-free cables.
Top quality metal cabinet.
Automatic thermo-magnetic circuit breaker.

OPTIONAL EQUIPMENT AND NON-STANDARD EQUIPMENTS
Specially protected cabinets for outdoor use (polyester, stainless steel, metal cabinets with high IP protection).
Other power ratings, voltages, steps or frequencies available upon request.
